Application:All kinds of corrosive liquid
Measuring Range:10 meters
Process Connection:Thread, Flange
Medium Temperature:-40℃ ~ 120℃
Process Pressure:-0.1~0.3 MPa
Accuracy:± 5mm
Protection Grade:IP67
Frequency Range:26GHz
Signal Output:4... 20mA/HART (Two-wire / Four) RS485/ Modbus
Explosion-proof Grade:Exia ⅡC T6 Ga

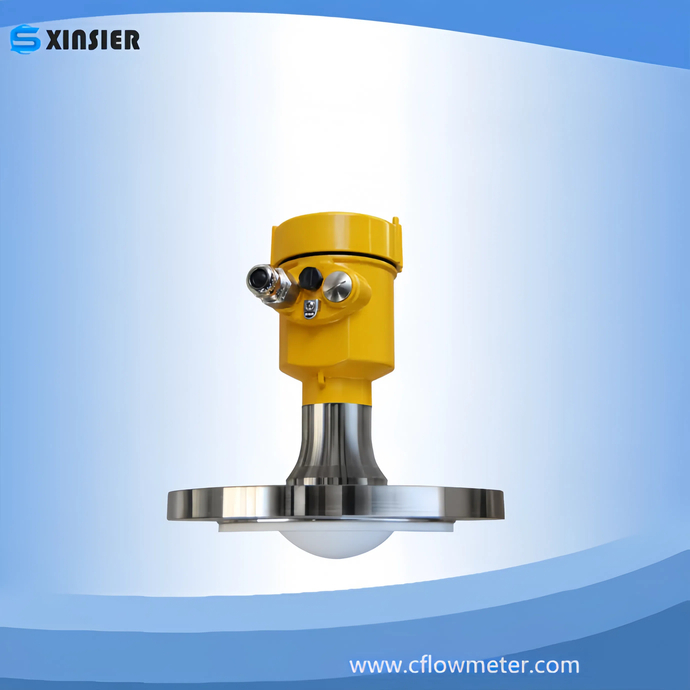

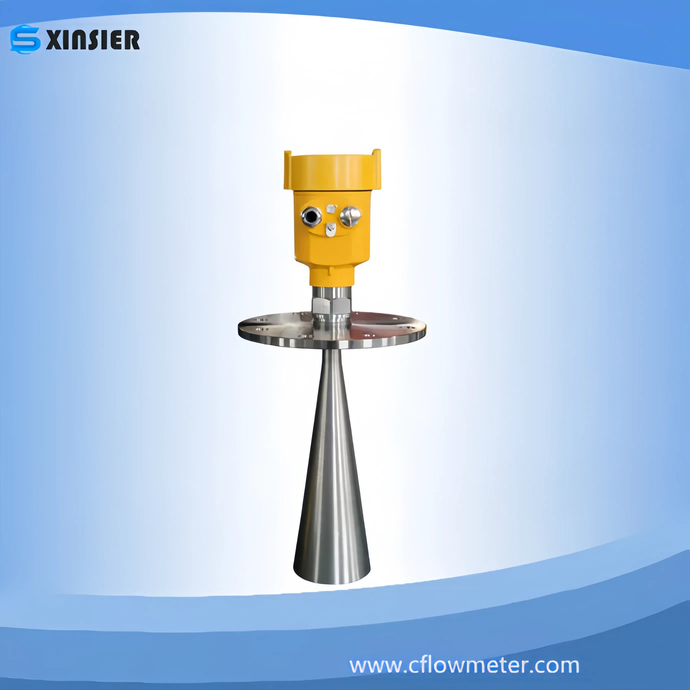

This series of radar level meter adopted 26G high frequency radar sensor, the maximum

measurement range can reach up to 70 meters. Antenna is optimized further processing,

the new fast microprocessors have higher speed and efficiency can be done signal

analysis, the instrumentation can be used for reactor, solid silo and very complex

measurement environment.

The characteristics of 26G radar level meter:

 Small antenna size, easy to install; Non-contact radar, no wear, no pollution.

 Almost no corrosion, bubble effect; almost not affected by water vapor in the

atmosphere, the temperature and pressure changes.

 Serious dust environment on the high level meter work has little effect.

 A shorter wavelength, the reflection of solid surface inclination is better.

 Beam angle is small, the energy is concentrated, can enhance the ability of echo

and to avoid interference.

 The measuring range is smaller, for a measurement will yield good results.

 High signal-to-noise ratio, the level fluctuation state can obtain better



 High frequency, measurement of solid and low dielectric constant of the best
