Principle:Bimetal Thermometer
Bezel:SS 304 stainless steel, hermetically sealed or detachable
Movement:Bi-metallic coil
Bezel:SS 304 stainless steel, hermetically sealed or detachable
Accuracy:+/-1.5 full scale standard; +/-1 full Scale Available
Range:From -80 C/0 C And 0 C/550 C (customized)
Pointer:Aluminum, painted black
Lens:Glass standard, Shatterproof Glass Len Is Available
Dial Size:5
Stem OD:Stem OD
Thread:1/2
Fillable:Silicon oil or glycerine available
Field:Pipeline,surface,industrial,oil,chemical,power station,marine,etc.

GENERAL SPECIFICATIONS

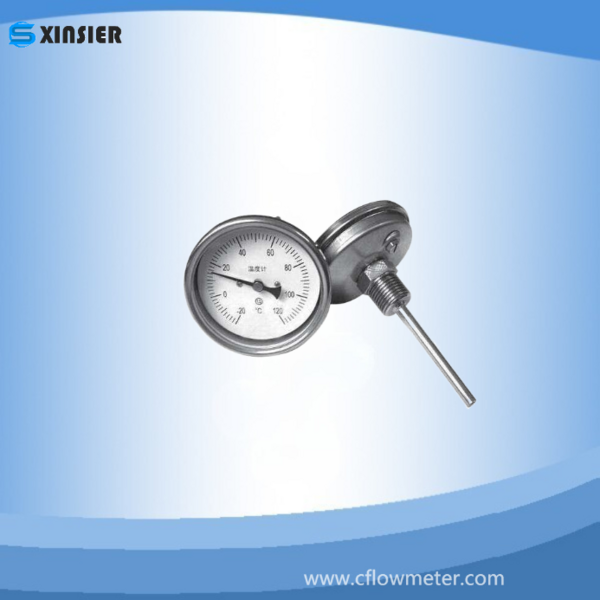

High Quality Stainless Steel Case Bimetal Thermometer For Industrial

This kind of thermometers is ideal for most rugged industrial temperature measurement application,such as in chemical and petrochemical industry,machine and apparatus construction,food and beverage industry&pulp and paper industry.The hermetically-sealed case offers protection from weather and dust,and is guaranteed against fogging up,the bimetal helix is coated with a viscous silicone to minimize pointer oscillation and improve temperature transmission.

Case: corresistant SS304 case and bezel. Designed and constructed to provide a hermetic seal IP65,which prevents fogging and damage caused by to the worng components.

Dial : aluminum with white matt finish ,flat or dish type.It offers accurate indication of C and F scales .

Window: clear and strong glass ,gasketed to maintan weather tight integrity .

External Reset: standard on all process grade bimetal thermometers.

There is screw on case back side allows to field calibrate the thermometer .This feature guarantees maxium accuracy at a selected area of temperature range .

Bimetal Element : an extremely responsive temperature sensing element which has been carefully sized and tested in order to ensure continued accuracy .

Warranty: SINCERE INSTRUMENT offer 12months quality warranty .
