PRODUCT CENTER

  • Infrared Thermometer

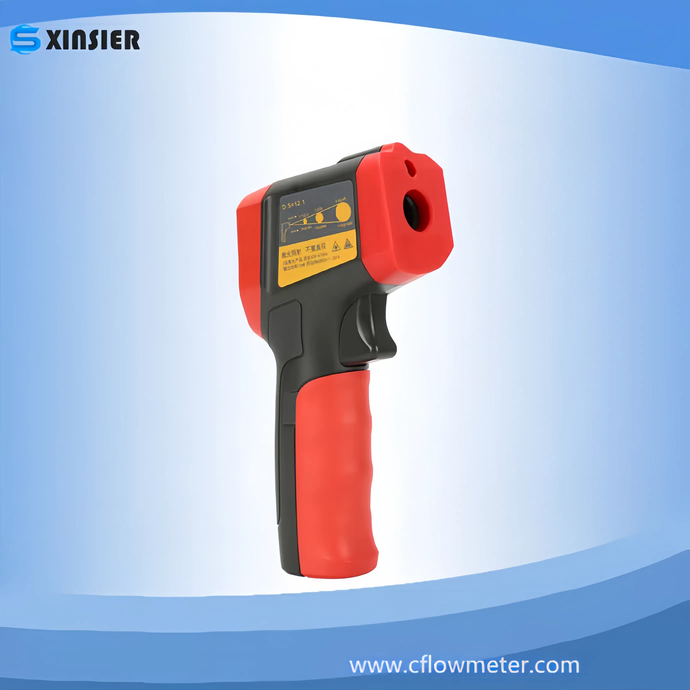

Name:Infrared Thermometer
Principle:Non-contact Infrared
Temperature range:-32--320 centigrade or tailored
Unit:Centigrade or Fahrenheit
Target distance:12 :1 or negotiable
Reaction time:500ms
Accuracy:+-2 or negotiable
Emissivity:0.95
Resolution:0.1 C or 0.1 F
Repeatability:+_1
Shape:Gun-shape
Power supply:Battery
Dsiplay:LCD LED
Warranty:12 months

Product Description

Digital Infrared (IR) Thermometer are very useful  for measuring surface of hot, hazardous or hard to reach objects without touching them. Just aim with Laser Point, press the button and get the temperature readings in °C or °F within second.





Applications
* Heat ventilation air-conditioning and refrigeration* Automotive industry* Electrical & power voltage/current inspection field* Water treatment and water quality inspection* Environmental monitoring* Marine and weather* Gas industry* Food processing industry





Features

  • Memory storage up to 12 data
  • Wide Temperature range: -50 ~ 700°C (-58 ~ 1292°F)
  • D:S = 12:1, maximum distance from the target object
  • Highly accurate and reliable
  • Adjustable Emissivity from 0.10 ~ 1.00 (Preset at 0.95)
  • Spectral Response from 8~14µm
  • Easy to read Large screen display
  • 4 levels Battery Power Indication
  • Auto Power Off when idle
  • Data Hold Function
  • Access surface temperature in 1 second
  • Easy switch to °C or °F
  • Maximum (MAX), Minimum (MIN), Average (AVG) and Difference (DIF) temperature functions
  • Adjustable High / Low Temperature Alarm
  • Fast responsetime (0.5 seconds), highly accurate and reliable
  • Measure hazardous or inaccessible objects (high-voltage parts)
  • Pre-Calibrated in Factory
  • Ergonomically shaped hand grip
  • Laser Target Pointer ON/OFF selection
  • Backlight ON/OFF selection
  • With CE marking, meets EU safety, health and environmental requirements


Specifications

  • Temperature Range : -50 ~ 700°C (-58 ~ 1292°F)
  • Resolution : 0.1°C/°F
  • Accuracy :
    • -50~0°C (-58~32°F): ±3°C (±5°F)
    • 0~700°C (32~1292°F): ±1.5 °C (±2.7 °F) or ±1.5%
  • Repeatability : 1% or 1°C
  • Response Time : 500ms, 95% response
  • Spectral Response (Wavelength) : 8~14µm
  • Distance to Spot Ratio (D:S) : 12:1
  • Emissivity : 0.95 (fixed) , 0.10~1.00 (user adjustable)
  • Laser Power : <1 mW
  • Laser Class : Class III
  • Selectable between °C / °F
  • Data Hold Function
  • Laser Target Pointer Selection
  • Backlight Display Selection
  • Auto Power Shut Off
  • Operating Environment:
  • Temperature: 0~40°C (32~104°F)
  • Relative Humidity : 10~95% R.H. non-condensing, up to 30°C
  • Storage Temperature : -20~60°C (-4~140°F)
